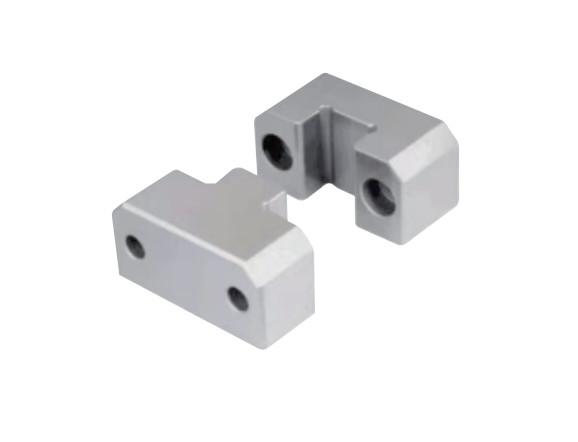

1. Square positioning block, also known as side lock, auxiliary device, precise positioning. Material: SKD11 or YK30, Hardness: 55-60HRC;
2. It is installed on the side surface of the mold, which is very convenient for loading and unloading, and the mounting holes on the template are easy to process.
3. The precise positioning or introduction mechanism of the mold can accurately locate the core when the movable mold and the fixed mold are closed, which can reduce the wear and damage of internal parts and cavities, and can more accurately control the quality of injection products and prolong the mold. life, improve overall production efficiency and create huge value.
4. Note: Due to the extremely small gap between the positioning blocks, in order to avoid collisions during mold clamping, it needs to be used in conjunction with precision guide posts, and the gap between the convex and concave blocks of the square positioning block is relatively small. Please pay attention to the processing and arrangement. It is used for the positioning of precision molds such as connectors and electronic components.

♦ Products Show

Square guide bar baito oilless side locks
